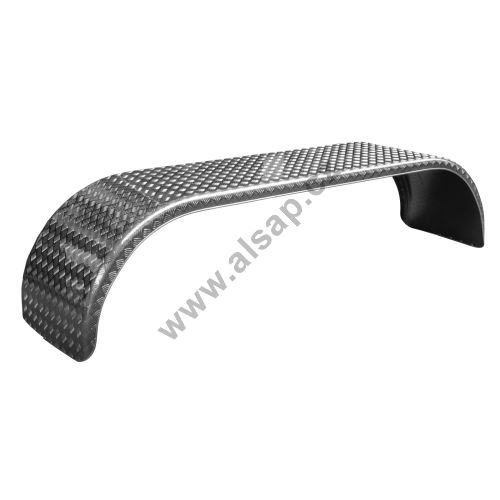

Aluminium chequer plate mudguard, W 650 × R 650 × L 2700 × H 650 mm

The aluminium ALQ mudguard is designed for use on trucks, trailers, semi-trailers and special-purpose bodies. Thanks to its aluminium construction, it offers excellent corrosion resistance, long service life and lower weight compared to steel mudguards. The ALQ five-bar chequer plate finish gives the mudguard a distinctive appearance while increasing the rigidity of the material, contributing to greater resistance to deformation during operation.

The extended mudguard design is particularly suitable for tandem and multi-axle applications. With an arc length of 2700 mm, it provides effective coverage of multiple wheels, reducing water, mud and road debris spray while helping to protect both the vehicle and surrounding traffic.

The mudguard is suitable for installation on either the left or right side of the vehicle.

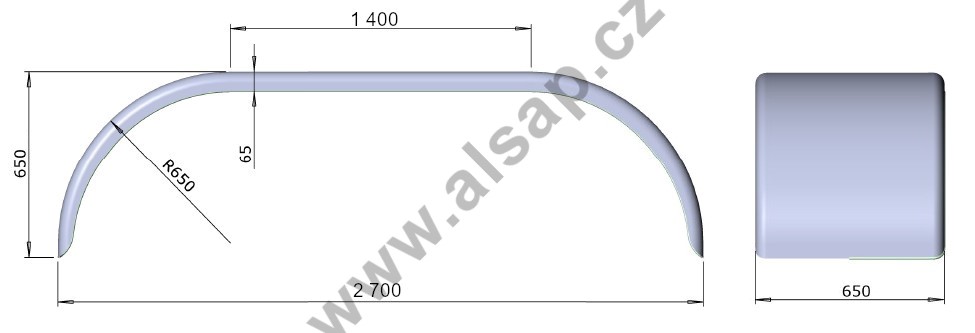

• Mudguard width: 650 mm
• Radius: 650 mm
• Arc length: 2700 mm
• Height: 650 mm
• Material: ALQ aluminium sheet (five-bar chequer plate finish)
• Suitable for left- and right-hand side installation
• Designed for tandem and multi-axle applications
• Excellent resistance to corrosion and weather conditions
• Increased rigidity thanks to the ALQ five-bar chequer plate finish
• Long service life
