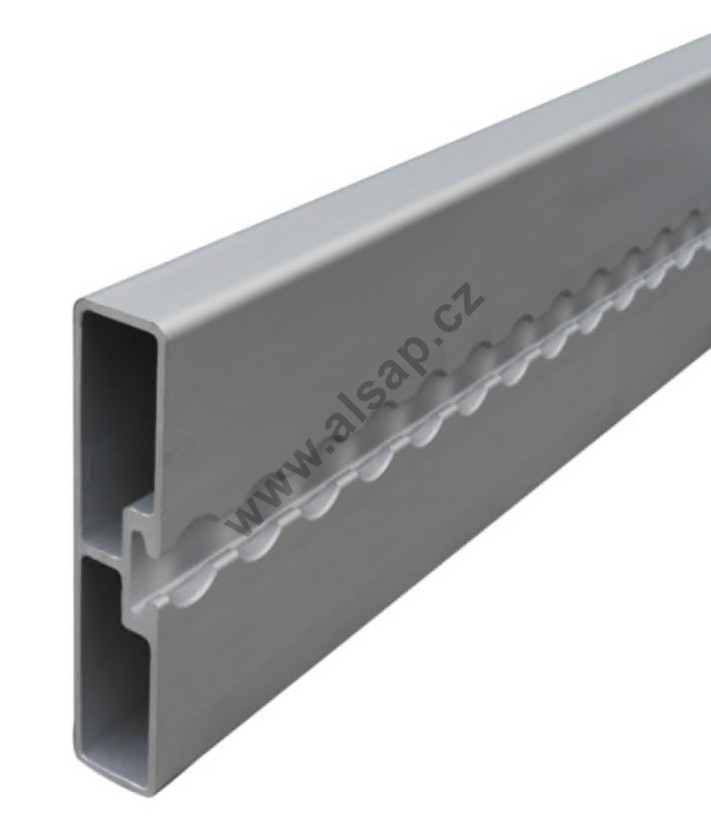

Tarpaulin profile 100x25mm with AirLine system - anodized

The tarpaulin board with an integrated AirLine rail represents a modern solution for flatbed bodies. This part not only reinforces the construction bu...More information
Tarpaulin profile 100x25mm with AirLine system - anodised
News
Tarpaulin profile 100x25mm with AirLine system - anodised
Tarpaulin profile 100x25mm with AirLine system - anodised (1)
Type
Select an option
Conditional availability
42,82 EUR price for 1 m51,81 EUR with 21% VAT
Total Length(mm)
1
Add more Update price
Total:
0 EUR excluding VAT
0 EUR including VAT
Request
Code311030_m
The tarpaulin board with an integrated AirLine rail represents a modern solution for flatbed bodies. This part not only reinforces the construction but also serves as an anchoring system for securing the load.

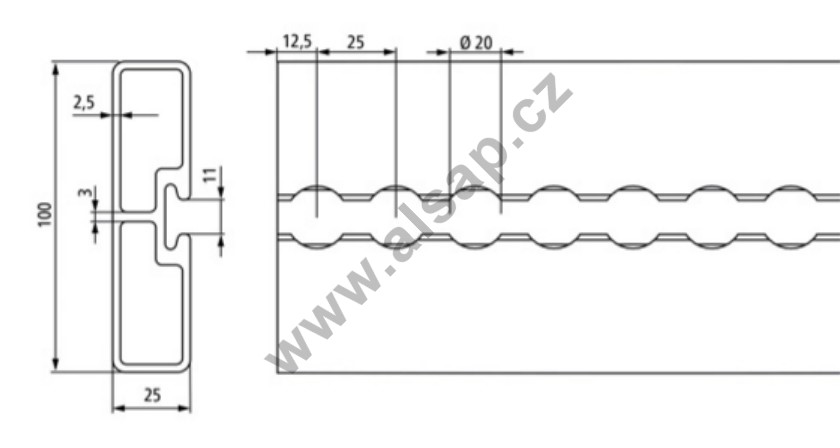

  • Dimensions: width 25 mm, height 100 mm
  • Material: aluminum, anodized finish (corrosion resistant)
  • Weight: 1.57 kg/m

  • Average hole diameter: 20 mm

  • Load capacity:

    • at an angle of 45°: 1000 daN

    • at an angle of 90°: 1500 daN

    • Benefits and Uses

    • Integrated AirLine System: facilitates cargo securing using straps, hooks, or special adapters. There's no need to install additional separate rails.
    • Tensioning the sail: the board helps keep the sail tightly stretched, which increases its lifespan and reduces noise while driving.
    • Quick handling: the removable structure allows for easier loading and unloading.
    • Safety and Certification: The tarpaulin board complies with VDI 2700 guidelines and ensures secure cargo securing during transport.
    TypeCut the profile to the exact length
    Weight1,57 kg
Tarpaulin profile 100x25mm with AirLine system - anodisedObrázek
Tarpaulin profile 100x25mm with AirLine system - anodised (1)Obrázek (1)
DescriptionPictures
