Twist lock 52 mm interchangeable body lock with locking pin

Fixed Twist Lock for securing swap bodies and containers according to the ISO standard. It is equipped with a locking pin with a diameter of 52 mm and...More information
Twist lock 52 mm interchangeable body lock with locking pin
Twist lock 52 mm interchangeable body lock with locking pin
Twist lock 52 mm interchangeable body lock with locking pin (1)
Twist lock 52 mm interchangeable body lock with locking pin (2)
125,3 EUR price for 1 pcs151,6 EUR with 21% VAT
Request
On request
in-store pickup at Králův Dvůr u Berounaon requestWith a delivery company:on request
Code750061

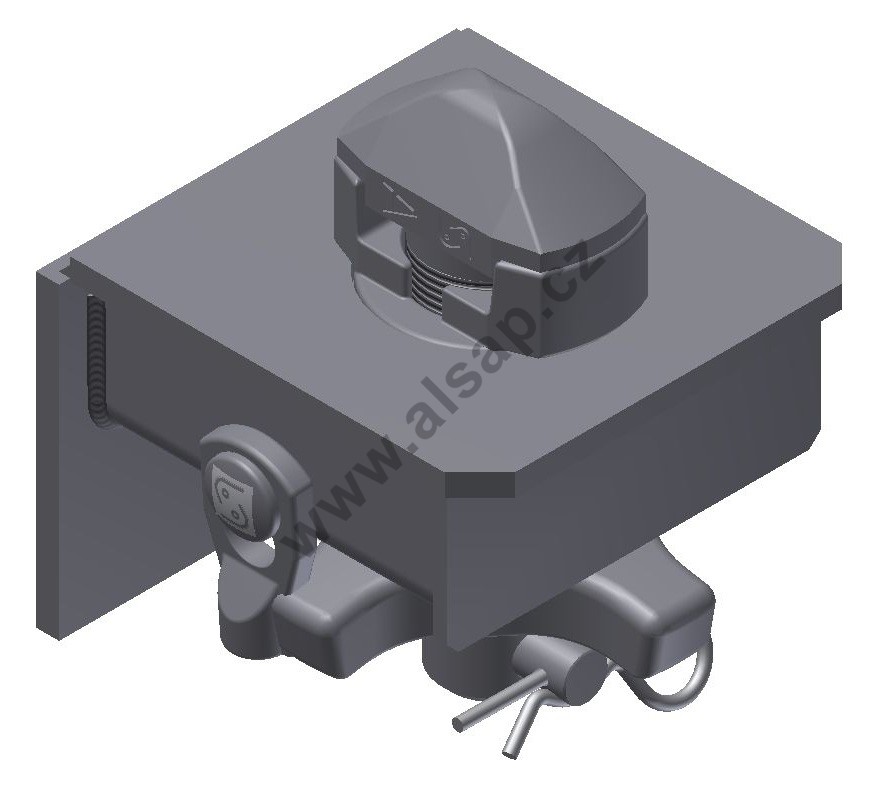

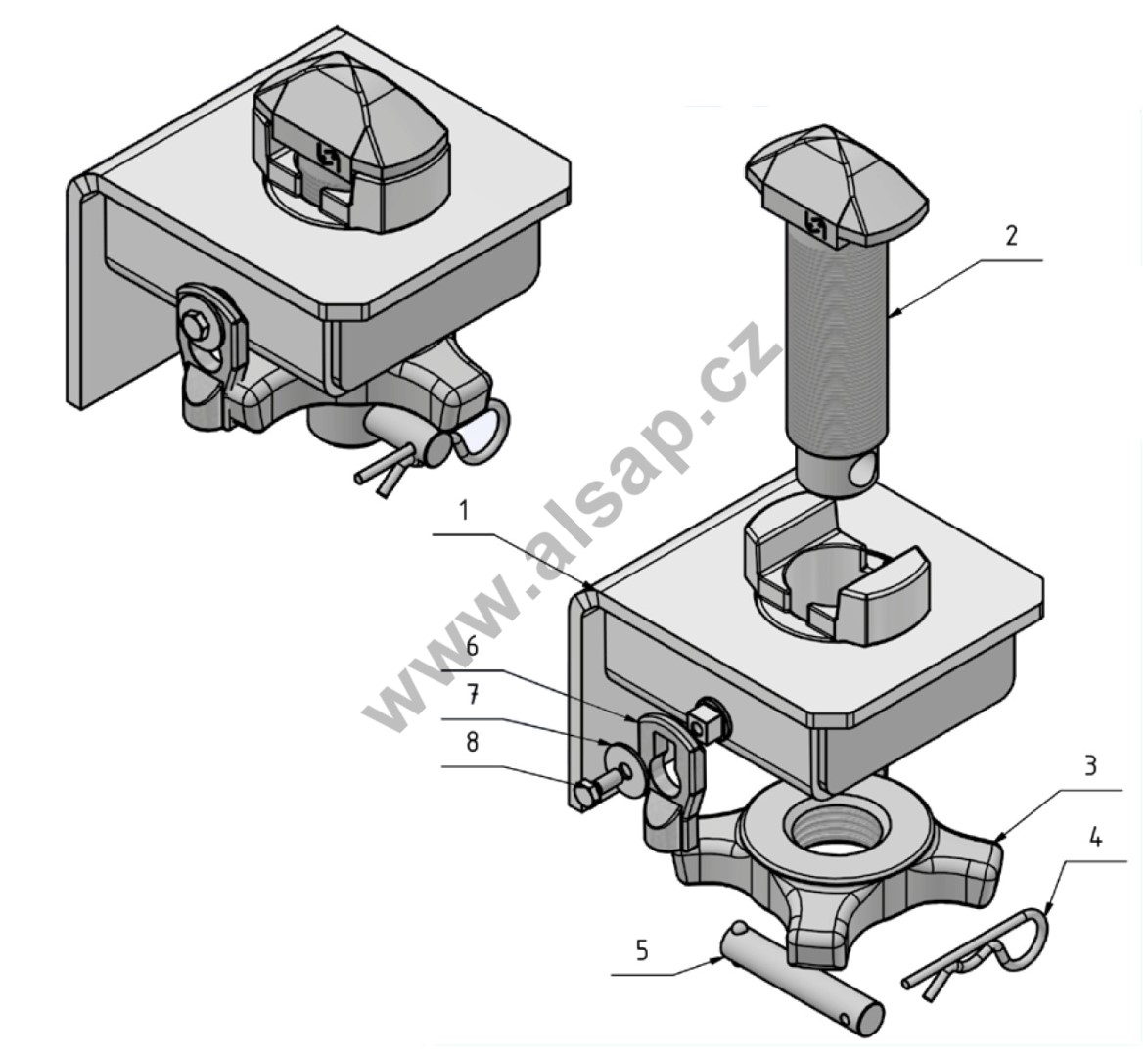

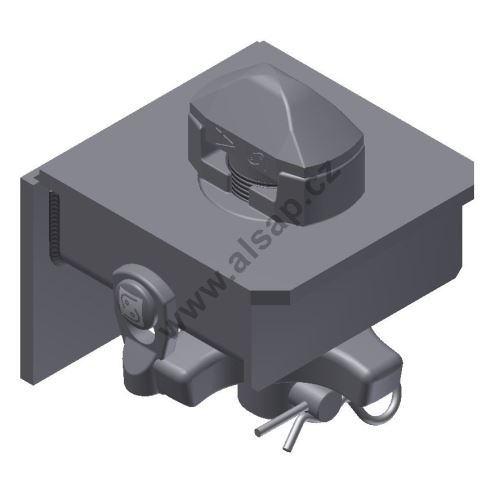

Fixed Twist Lock for securing swap bodies and containers according to the ISO standard. It is equipped with a locking pin with a diameter of 52 mm and an operating lever. The uncoated steel body is intended for welding. The galvanized internal parts are supplied unassembled.

  • Design: fixed, non-extendable
  • Backplate: 140 mm
  • Locking pin guide: rotated by 90°

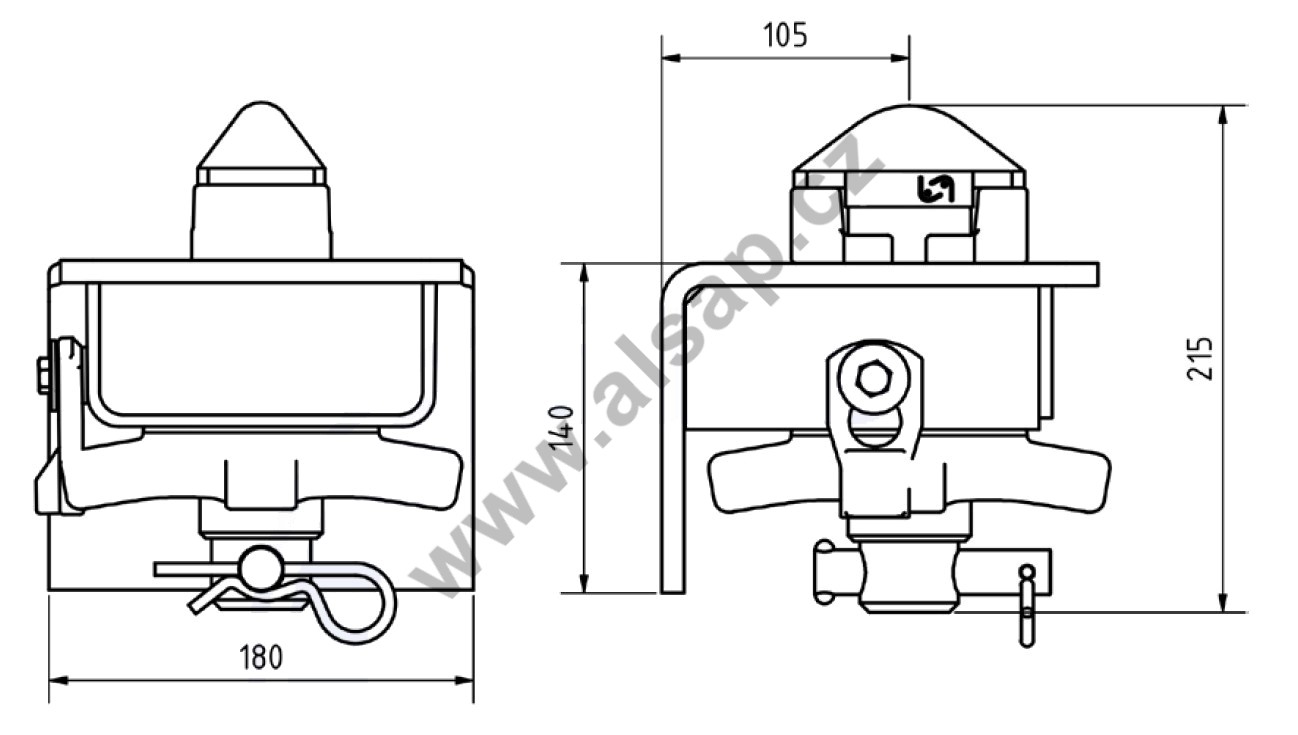

  • Dimensions: 180 × 185 × 215 mm
  • Weight: 13 kg
PNISO-Norma
Weight13,00 kg
Twist lock 52 mm interchangeable body lock with locking pinObrázek
Twist lock 52 mm interchangeable body lock with locking pin (1)Obrázek (1)
Twist lock 52 mm interchangeable body lock with locking pin (2)Obrázek (2)
